As well as its catalogues and quality certificates, TUYPER provides customers and prescribers with the BIM catalogue of all its products, in order to facilitate their integration in different projects.

Products

PVC Pipes

PVC Sewerage

PVC Soil and Waste

PVC Water Supply and Irrigation

PVC Pressure
Bi-Oriented System (PVC-O)

PVC Electricity
and Telecommunications

PVC Sewerage

PRODUCT GUIDE

Download PDF

COMPACT PVC SEWERAGE Catalogue (ESP.)

Download PDF

ECOSAN Integral SEWERAGE System Catalogue

Download PDF

ECOSAN SEWERAGE MANHOLES Brochure (ESP.)

Download PDF

TUYPER BIM PVC AND PE Sewerage Pipes & Fittings

Download REVIT

BC3 COMPACT PVC SEWERAGE

Download BC3

BC3 ECOSAN STRUCTURED WALL PVC SEWERAGE

Download BC3

EXCEL COMPACT PVC SEWERAGE

Download EXCEL

EXCEL ECOSAN STRUCTURED WALL PVC SEWERAGE

Download EXCEL

PRESTO COMPACT PVC SEWERAGE

Download PRESTO

PRESTO ECOSAN STRUCTURED WALL PVC SEWERAGE

Download PRESTO

Unplasticised PVC sewerage piping systems are designed for the drainage of wastewater and sewerage of industrial or domestic origin. These pipes represent the most comprehensive, safe and effective solution for these types of installations.

PVC sewerage pipes are extruded, calibrated and flared on the production line by fully automated procedures. TUYPER offers for this field of application three top quality PVC piping systems helping to address any type of solution with the maximum safety and efficiency:

Compact PVC Sewerage Pipes

.

Manufactured according to standard UNE EN 1401 (Unplasticised poly(vinyl chloride) pipes for underground non-pressure sewerage applications) and according to standard UNE EN 1452 (Use P)("Unplasticised poly(vinyl chloride) pipes for buried and above-ground under pressure sewerage applications").

.

Smooth inner and outer surface.

.

Brick orange colour

.

Diameters: Ø 110 – 800 mm (SN2 - SN4 - SN8).

01_AENOR 1401 (Non-pressure PVC Sew.)

Download certificate

02_AENOR 1452 (PVC pressure Sew. P Use)

Download certificate

Structured Wall PVC Sewerage Pipes

.

Manufactured according to standard UNE EN 13476-2 ("Unplasticised poly(vinyl chloride) pipes, with structured wall, for underground non-pressure sewerage applications. Smooth internal and external surfaces").

.

Smooth inner and outer layers (compact PVC) connected by an an intermediate layer in the form of foam (expanded PVC).

.

Brick orange colour

.

Diameters: Ø 110 – 800 mm (SN4 – SN8)

01_AENOR 13476 (Struct. Wall PVC Sew.)

Download certificate

02_AENOR 15343 (Recycled Plastic Content)

Download certificate

VIDEO ECOSAN PIPES

Watch video

Sewerage Manholes

.

Key element to guarantee the pipeline’s watertightness.

.

Manufactured with smooth structured ECOSAN pipes.

.

Modular pieces: the most appropriate solution for each installation can be obtained.

.

Diameters: Ø 630 and 800.

PVC Soil and Waste

PRODUCT GUIDE

Download PDF

PVC SOIL AND WASTE Catalogue (ESP.)

TUYPER BIM PVC Soil and Waste Pipes & Fittings

Download REVIT

PVC soil and waste systems designed by TUYPER constitute one of the widest, most secure and most efficient options in the market for the removal of wastewater (at low and high temperatures) within the building structure.

Thanks to the broad range of top-quality products, they offer a complete solution for the building sector, and they can solve any type of problem with the greatest effectiveness and safety.

"B Series" PVC Soil and Waste Pipes

.

Manufactured according to standard UNE EN 1329 (“Unplasticised poly(vinyl chloride) pipes, for soil and waste discharge (low and high temperature) within the building structure”) and y UNE EN 13501 (“Fire reaction for unplasticised PVC pipes for wastewater and rainwater discharge”).

.

Smooth inner and outer surface.

.

Grey colour.

.

Diameters: Ø 32 - 315 mm.

01_AENOR 1329 (PVC Soil&Waste Pipes)

Download certificate

02_AENOR 13501 (Fire Reaction PVC Soil&Waste Pipes)

Download certificate

“F Series” PVC Soil and Waste Pipes

.

Manufactured according to standard UNE EN 12200 (“Plastics piping systems for rainwater discharge above ground external use”).

.

Smooth inner and outer surface.

.

Grey colour

.

Diameters: Ø 75 - 125 mm.

PVC Flexible Soil and Waste Pipes

.

Manufactured according to standard UNE EN ISO 3994 (“Helical-thermoplastic-reinforced thermoplastics hoses for suction and discharge of aqueous materials”).

.

Grey colour

.

Diameters: Ø 20 - 63 mm.

“B Series” Structured Wall PVC Soil and Waste Pipes

.

Manufactured according to standard UNE EN 1453 (“Unplasticised poly(vinyl chloride) pipes, with structured wall, for soil and waste and rainwater discharge (low and high temperature) within the building structure”) and UNE EN 13501 13501 (“Fire reaction for unplasticised PVC structured wall pipes for soil and waste and rainwater discharge”).

.

Smooth inner and outer layers (compact PVC) connected by an intermediate layer in the form of foam (expanded PVC).

.

Grey colour

.

Diameters: Ø 32 - 315 mm.

01_AENOR 1453 (Struct. Wall PVC Soil&Waste Pipes)

Download certificate

02_AENOR 13501 (Fire Reaction Struct. Wall PVC Soil&Waste Pipes)

Download certificate

2,5 Series Soil and Waste Pipes

.

Pipes indicated for ventilation.

.

Smooth inner and outer surface.

.

Grey colour

.

Diameters: Ø 110 - 500 mm.

PVC Water Supply/Irrigation

PRODUCT GUIDE

Download PDF

PVC PRESSURE Catalogue (ESP.)

Download PDF

TUYPER BIM PVC Pressure Pipes & Fittings

Download REVIT

BC3 PVC PRESSURE RUBBER RING JOINT

Download BC3

BC3 PVC PRESSURE GLUED

Download BC3

EXCEL PVC PRESSURE RUBBER RING JOINT

Download EXCEL

EXCEL PVC PRESSURE GLUED

Download EXCEL

PRESTO PVC PRESSURE RUBBER RING JOINT

Download PRESTO

PRESTO PVC PRESSURE GLUED

Download PRESTO

The proven quality of PVC pipes, their excellent technical and economic feasibility, as well as their high recyclability, safety and durability, have made them the most suitable alternative for any type of pipeline for fluids under pressure.

TUYPER offers a broad range of PVC Pressure pipes, guaranteed by thousands of kilometres supplied for multiple types of installations, especially for agricultural irrigation and potable water supply networks. TUYPER’s wide variety of PVC pressure pipes TUYPER includes:

PVC Pressure Pipes Rubber Ring and Glued jointing

.

Manufactured according to standard UNE EN 1452 (“Unplasticised poly(vinyl chloride) pipes for water supply under pressure”).

.

Grey colour

RUBBER RING:

.

Diameters: Ø 63 - 800 mm.

.

Pressures: 6 - 25 Bar.

GLUED

.

Diameters: Ø 20 - 400 mm.

.

Pressures: 6 - 25 Bar.

01_AENOR 1452 (PVC Pressure Use W)

Download certificate

4 Bar PVC Pressure Pipes

.

Grey colour

.

Diameters: Ø 75 - 500 mm.

.

Pressure: 4 Bar.

Bioriented PVC Pressure Pipes (PVC-O)

PRODUCT GUIDE

Download PDF

GPF Biopipe BI-ORIENTED PVC (PVC-O) Brochure

Download PDF

TUYPER BIM PVC-O Pressure Pipes & Fittings

Download REVIT

BC3 GPF Biopipe BI-ORIENTED PVC (PVC-O)

Download BC3

EXCEL GPF Biopipe BI-ORIENTED PVC (PVC-O)

Download EXCEL

PRESTO GPF Biopipe BI-ORIENTED PVC (PVC-O)

Download PRESTO

VÍDEO GPF BIOPIPE PIPES

Watch video

PVC is a polymer whose molecules are randomly oriented. With PVC-O an alignment of the molecules is achieved, which results in the creation of a laminar structure (in layers) which significantly improves the physical and mechanical properties of PVC providing it with exceptional features and extraordinary additional competitive advantages, whilst also maintaining the attributes of the original raw material.

In the process of biorientation, the stretching of the molecules can be done in one or two directions. In GPF Biopipe® Bi-oriented PVC pipes this stretching is carried out in two directions: radial and axial. A Bi-oriented PVC system is thus obtained, giving the pipe an increased performance and a greater resistance. Moreover, this system guarantees quality control from the beginning to the end of the production process, a continuous dimensional control (thickness and diameter uniformity); high production speed and stability, maximum energy efficiency and the possibility of manufacturing different pipe lengths.

Bioriented PVC Pressure Pipes (PVC-O)

.

Manufactured according to standards ISO 16442 and EN 17176 (“Oriented poly(vinyl chloride) (PVC-O) pipes for water piping systems”).

.

Manufactured with MRS 50, fulfilling the most demanding classification: Class 500.

.

White color with coloured stripes to distinguish between the different applications:

-

White with blue stripes: potable water pressure distribution and irrigation systems.

-

White with purple stripes: regenerated water systems.

.

Diameters: Ø 90 - 630 mm.

.

Pressures: Ø 12,5 Bar - 25 Bar.

01_AENOR 16422 (GPF BIOPIPE PVC-O Pressure)

Download certificate

02_AENOR 17176 (GPF BIOPIPE PVC-O Pressure)

Download certificate

PVC Electricity and telecommunications

PRODUCT GUIDE

Download PDF

ELECTRICITY AND TELECOMMUNICATIONS Catalogue (ESP.)

TUYPER BIM Electricity and Telecommunications Pipes

Download REVIT

TUYPER offers a system of underground PVC electricity conduits and telecommunications cabling which combines lightness and resistance, adapting with a higher efficiency to any situation. They are light and easy to assemble, they present a great chemical resistance, they are impermeable and they possess electrical and thermal insulation. These pipes also include in their system fittings which allow for carrying out changes of direction.

PVC Electrical Conduits

.

Smooth inner and outer surface.

.

Dark grey colour.

.

Diameters: Ø 63 - 160 mm.

Products

PE Pipes

PE Sewerage

PE Water Supply and Irrigation

PE Drainage

PE Electricity
and Telecommunications

PE Gas

PE Sewerage

PRODUCT GUIDE

Download PDF

PE PRESSURE SEWERAGE Catalogue (ESP.)

Download PDF

CONDUSAN PE SEWERAGE Catalogue (ESP.)

Download PDF


TUYPER BIM PVC AND PE Sewerage Pipes & Fittings

Download REVIT

BC3 PE CORRUGATED SEWERAGE CONDUSAN

Download BC3

EXCEL PE CORRUGATED SEWERAGE CONDUSAN

Download EXCEL

PRESTO PE CORRUGATED SEWERAGE CONDUSAN

Download PRESTO

The CONDUSAN range of High Density Polyethylene (HDPE) pipes is a leading-edge system for wastewater and rainwater non-pressure underground sewerage pipelines. Thanks to their innovative design and to the excellent properties of the materials they are made with (HDPE), CONDUSAN pipes blend flexibility, resistance and lightness, making them the most competitive alternative in their field of application compared to other traditional systems.

CONDUSAN pipes are formed by perfectly two perfectly welded layers:
- One outside black corrugated layer, which gives the pipe great stability to sunlight.
- One inside white smooth layer, which facilitates inspection with camera systems (increasingly used technique).

HDPE Corrugated Sewerage Pipes (CONDUSAN)

.

Manufactured according to standard UNE EN 13476 (“Polyethylene structured-wall pipes for non-pressure underground sewerage. Smooth inner surface and outer profiled surface”).

.

Black corrugated outside layer and white smooth inside layer.

.

Diameters: Ø 315 - 1.000 mm (SN4) / Ø 160 - 1.000 (SN8).

.

Two types of jointing:

-

With HDPE coupling: Ø 160 mm OD, 200 mm OD, 250 mm OD, 300 mm ID, 315 mm OD, 400 mm ID, 400 mm OD y 500 mm OD.

-

With integrated socket: Ø 500 mm ID, 600 mm ID, 630 mm ID, 800 mm OD, 1.000 mm OD.

VIDEO CONDUSAN PIPES

Watch video

PE 100 pipes for non-potable water networks and sewerage under pressure (TUPLEN)

.

Manufactured according to standard UNE EN 12201 (“PE 100 polyethylene pipes for water supply, drainage and sewerage under pressure”).

.

Black colour with brown stripes.

.

Diameters: Ø 32 - 500 mm.

.

Pressures: 6 - 16 Bar.

02_AENOR 12201 (PE 100 Pressure)

Download certificate

PE Water Supply/Irrigation

PRODUCT GUIDE

Download PDF

PE PRESSURE Catalogue (ESP.)

Download PDF

TUYPER BIM PE Pressure Pipes

Download REVIT


BC3 PE 40 PRESSURE WATER SUPPLY AND IRRIG.

Download BC3

BC3 PE 100 PRESSURE WATER SUPPLY AND IRRIG.

Download BC3

EXCEL PE 40 PRESSURE WATER SUPPLY AND IRRIG.

Download EXCEL

EXCEL PE 100 PRESSURE WATER SUPPLY AND IRRIG.

Download EXCEL

PRESTO PE 40 PRESSURE WATER SUPPLY AND IRRIG.

Download PRESTO

PRESTO PE 100 PRESSURE WATER SUPPLY AND IRRIG.

Download PRESTO

The marked increase in the use of polyethylene piping in recent years is proof of its excellent technical suitability and competitiveness in all types of networks carrying fluids under pressure. With a long useful life and exceptional physical and chemical characteristics, polyethylene pipes are the current most efficient alternative to piping made of metals and other traditional materials.

TUYPER offers a vast range of top quality polyethylene pipes for all types of applications:

PE 40 pipes for potable water supply under pressure (TUPLEN)

.

Manufactured according to standard UNE EN 12201 (“PE 40 polyethylene pipes for water supply and sewerage under pressure”).

.

Black colour with blue stripes.

.

Diameters: Ø 20 - 90 mm.

.

Pressures: 4 - 10 Bar.

01_AENOR 12201 (PE 40 Pressure)

Download certificate

PE 100 pipes for potable water supply under pressure (TUPLEN)

.

Manufactured according to standard UNE EN 12201 (“PE 100 polyethylene pipes for water supply and sewerage under pressure”).

.

Black colour with blue stripes.

.

Diameters: Ø 20 - 1.000 mm.

.

Pressures: 4 - 25 Bar.

02_AENOR 12201 (PE 100 Pressure)

Download certificate

PE Drainage

PRODUCT GUIDE

Download PDF

DRAINAGE Catalogue (ESP.)

Download PDF

TUYPER BIM PVC and PE Drainage Pipes

Download REVIT

Polyethylene drainage pipes manufactured by TUYPER for groundwater collection and disposal have been designed to solve all the different situations which could arise, even drainage at great depths.

PE Drainage System (TUYPERDREN)

Double wall corrugated drainage pipes, manufactured with High Density Polyethylene (HDPE), which correspond to the DP system, that is, grooved in the area near the pipe’s key section. They are designed to solve those situations where the function of collection is a priority over that of evacuation and they are most suitable for their application in secondary lines.

Double wall corrugated pipes offer a greater resistance to crushing, for their S.C.S. (Specific Circumferential Stiffness) is superior to any other type of conventional pipe, therefore TUYPERDREN pipes are especially suitable for the drainage of land where the phreatic level is at depths greater than 4,00 m, allowing for the reuse of the collected water.

.

Manufactured according to standard UNE 53994 EX.

.

Black colour.

.

Diameters: Ø 110 - 500 mm.

PE Electricity and Telecommunications

PRODUCT GUIDE

Download PDF

ELECTRICITY AND TELECOMMUNICATIONS Catalogue (ESP.)

TUYPER BIM Electricity and Telecommunications Pipes

Download REVIT

Polyethylene pipes destined for underground electricity and telecommunications cable ducting guarantee quick and easy handling thanks to their lightness and flexibility, as well as a great resistance.

Corrugated PE Electrical Ducting Pipes TPC

This system is formed by two perfectly welded layers manufactured with an in-line process of automated coextrusion:

-

The outer corrugated layer, ring-shaped, gives the pipe additional resistance to crushing.

-

The smooth inner layer helps the sliding of the electrical cable.

The TPC system is manufactured with a socket on one of the pipe ends.

BARS

.

Corrugated outside and smooth inside.

.

6 m bars.

.

Colours: red and green.

.

Diameters: Ø 63 - 250 mm.

COILS

.

Corrugated outside and smooth inside.

.

50 m coils.

.

Colours: red and green.

.

Diameters: Ø 63 - 160 mm.

Compact Monotube/Tritube PE pipes for Electrical Conduits

This system is available in two forms: Monotube and Tritube.
They are compacted pipes with smooth walls.

.

Smooth outside and inside.

.

Colour: dark grey.

.

Diameters: Ø 32 - 63 mm.

PE Gas

PRODUCT GUIDE

Download PDF

PE PRESSURE Catalogue (ESP.)

Download PDF

TUYPER BIM PE Gas Pipes

Download REVIT

BC3 PE 100 POLYETHYLENE GAS PIPES

Download BC3

EXCEL PE 100 POLYETHYLENE GAS PIPES

Download EXCEL

PRESTO PE 100 POLYETHYLENE GAS PIPES

Download PRESTO

TUYPER offers an extensive range of high quality polyethylene pipes for the conduction of gaseous fuels. These pipes guarantee maximum resistance and total impermeability to gas diffusion.

Throughout the manufacturing process, TUYPER uses the most advanced quality control systems and equipment, complying with the criteria and specifications referring to the characteristics and testing methods specified in standard EN 1555.

Tuberías de PE para conducción de combustibles gaseosos PE 100 amarillo-anaranjado (TUPLEN)

.

Fabricadas según la norma UNE EN 1555 ("Tubos de polietileno PE 100 amarillo-anaranjado para el suministro de combustibles gaseosos").

.

Color: amarillo-anaranjado.

.

Diameters: Ø 20 - 315 mm (SDR 11) / Ø 63 - 315 mm (SDR 17) / Ø 63 - 315 mm (SDR 17).

01_AENOR 1555 (PE 100 GAS_amarillo-anaranjado.)

Download certificado
*/ ?>

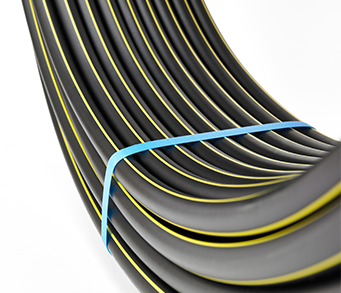

PE Pipes for the conduction of gaseous fuels black with yellow-orange stripes PE 100 (TUPLEN)

.

Manufactured according to standard UNE EN 1555 (“Black with yellow- orange stripes polyethylene PE 100 pipes for the supply of gaseous fuels”).

.

Colour: black with yellow-orange stripes.

.

Diameters: Ø 20 - 315 mm (SDR 11) / Ø 63 - 315 mm (SDR 17).

01_AENOR 1555 (PE 100 GAS – black with yellow-orange stripes)

Download certificado

Products

Fittings

Sewerage

Soil and Waste

Sewerage

PRODUCT GUIDE

Download PDF

PVC SEWERAGE FITTINGS Catalogue (ESP.)

Download PDF

PE SEWERAGE FITTINGS Catalogue (ESP.)

Download PDF

TUYPER has a wide range of PVC and PE sewerage fittings, thus offering a comprehensive system designed for sewerage networks.

PE:

.

Diameters: Ø 160 - 1.000 mm.

PVC:

.

Diameters: Ø 110 - 630 mm.

Soil and Waste

PRODUCT GUIDE

Download PDF

PVC SOIL & WASTE FITTINGS Catalogue (ESP.)

Download PDF

TUYPER offers a vast range of fittings designed for PVC soil and waste piping systems.

PVC:

.

Diameters: Ø 32 - 315 mm.

I have read, understood and accept the privacy policy.

I have read, understood and accept the privacy policy.

Your message has been sent successfully.
We will contact you shortly.

HEAD OFFICES

Tel.: +34 945 332 200

Commercial e-mail

comercial@tuyper.com

Offers/Orders e-mail

pedidos@tuyper.com

Expeditions e-mail

expediciones@tuyper.com

Administration e-mail

administracion@tuyper.com

TUBERÍAS Y PERFILES PLÁSTICOS, S.A.U.

Tel.: +34 945 332 200

Polígono Industrial de Lantarón, s/n

01213 Lantarón, Álava

Spain

PLÁSTICOS IMA, S.A.U.

Tel.: +34 952 717 010

Ctra. de Archidona - Salinas N-342, Km. 185

29300 Archidona, Málaga

Spain



Legal Notice, Privacy Policy and Cookies
Complaint Channel
